To keep your wood lathe in good working condition, you must take care of its various parts, such as sized lathes, shaft, hand wheel, headstock, tailstock, and handle. All these components are crucial for shaping wood and, therefore, require proper maintenance. By promptly replacing worn-out or broken parts, such as the hand wheel and support, you can prevent further damage and prolong the lifespan of your lathe. This guide will provide you with essential tips on maintaining your wood lathe, including the hand wheel and support to ensure its longevity. luding the hand wheel and support to ensure its longevity.
Size and Compatibility of Wood Lathe Parts
Checking Specifications
When replacing parts on a wood lathe, it’s crucial to understand the specific size requirements for each component. Different lathes have unique specifications for their parts, including the spindle size, tool rest base diameter, and tailstock quill dimensions. Before purchasing any replacement part, always check the lathe’s manual or manufacturer’s guidelines to ensure compatibility. Using incorrect sizes can damage the lathe or compromise its performance.
It’s important to note that even within the same brand, different models of wood lathes may have varying specifications for their parts. For example, while one model might require a 1-inch spindle thread, another model from the same manufacturer could necessitate a 1.25-inch thread. Therefore, never assume that replacement parts are universally compatible across all wood lathes without verifying their specifications.
When I was new to woodworking and needed to replace a worn-out tool rest on my wood lathe, I measured its base diameter accurately before purchasing a new one. This simple step saved me from frustration and additional expenses by ensuring I got the right-sized replacement part.
Avoiding Damage and Compromised Performance
Using incompatible parts can lead to severe consequences, such as damaging the lathe’s spindle threads or compromising its overall performance. For instance, installing a tool rest with an oversized base onto a smaller tool rest holder can cause instability during turning operations and even pose safety risks due to wobbling or shifting components.
Moreover, when assembled incorrectly, mismatched parts may exert uneven pressure on bearings and other internal mechanisms of the lathe. If not addressed promptly, this could lead to premature wear and tear of essential components.
Diving into the Headstock and Tailstock Mechanisms
Headstock Functionality
The headstock of a wood lathe houses the motor and spindle assembly, which provide the rotational power necessary for turning. This essential component drives the workpiece to create various woodturning shapes. The headstock’s primary function is to hold and rotate the workpiece while allowing precise adjustments to be made as needed. Understanding how this mechanism operates enables woodworkers to troubleshoot rotation, speed control, or power transmission issues effectively.
The headstock contains a shaft that connects directly to the motor, transferring its energy to turn the spindle. It features an index pin, which allows locking at specific intervals when rotating stock for fluting or indexing purposes. By grasping these critical elements within the headstock mechanism, individuals can better comprehend how different parts interact during operation.
Personal insight: Understanding how each component functions within the headstock helps me diagnose performance issues more accurately.
Tailstock Support
On a wood lathe, the tailstock is a critical support system for securing and stabilizing one end of the workpiece during turning operations. It ensures minimal vibration or movement at this end while maintaining proper alignment concerning the spinning axis of rotation. Familiarizing oneself with tailstocks allows for efficient troubleshooting and repair processes when encountering issues related to stability or alignment during turning tasks.
The tailstock typically uses a lever mechanism to adjust its position and lock it securely once positioned correctly. Moreover, how this lever interacts with other components ensures optimal support throughout various turning applications.
Managing Power and Speed Control Features
Power Switch Locations
Understanding the power switch locations is crucial for safe operation. Before working on your lathe, locate the power switch and familiarize yourself with its function. This ensures you can quickly turn off the machine in an emergency or when making adjustments.
It’s important to note that different lathes may have varying power switch placements, so always refer to your lathe’s manual for specific details. For instance, some lathes have a power switch near the headstock, while others may feature a foot pedal for convenient control. Understanding these nuances will help you operate your wood lathe safely and efficiently.
Being aware of any safety features associated with the power switch is essential. Some lathes are equipped with emergency stop buttons or other safety mechanisms that immediately cut off power in case of an issue—knowing how these features work can prevent accidents and protect you and your equipment.
Speed Control Options
Various options, such as pulleys or electronic controls, are available for speed control on a wood lathe. Pulley systems allow you to manually adjust speeds by changing belts between different-sized pulleys attached to the motor and spindle. On the other hand, electronic controls offer more precise speed adjustments at just the touch of a button.
Understanding these speed control features provides versatility in turning projects. Different materials and turning techniques require varying speeds for optimal results. By effectively utilizing these options, you can enhance your woodworking skills and achieve better project outcomes.
Personal Information: I find it helpful to mark important safety information near my woodshop area as a constant reminder before using my tools. Knowledge: Knowing where all safety switches are located allows me to react promptly if something goes wrong during my woodworking sessions.
The Significance of Tool Rests and Faceplates

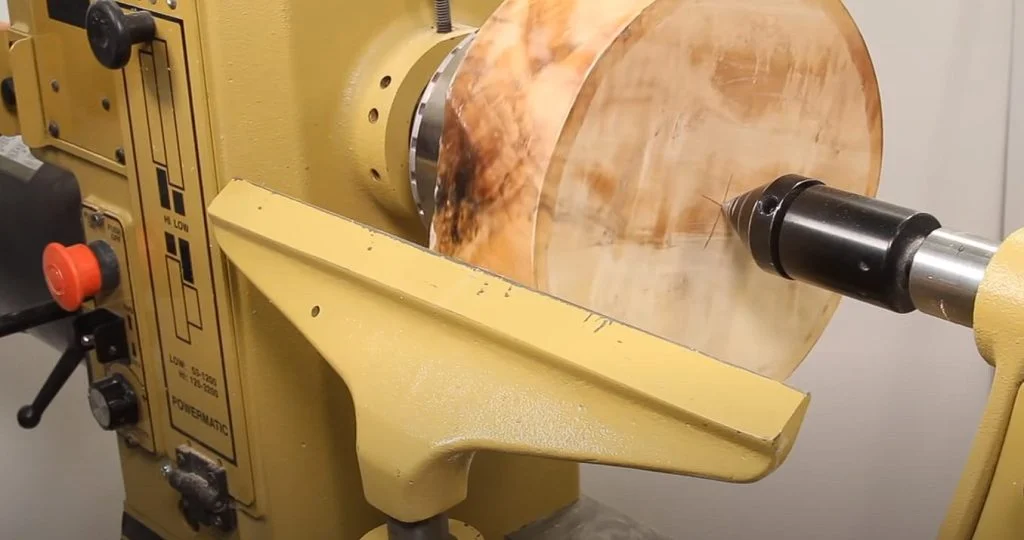

Importance of Tool Rests
Tool rests are crucial for woodturning as they provide essential chisel support, enhancing precision during turning. By offering a stable platform for the chisel to rest on, tool rests enable woodworkers to achieve smooth and consistent cuts. This stability is essential when working with delicate or intricate designs, where even the slightest movement can affect the outcome. Having the right tool rest allows for better control over the cutting process, resulting in cleaner and more refined finishes.
When selecting tool rests, it’s vital to consider factors such as size, material, and adjustability. Adjustable tool rests offer greater flexibility in accommodating various turning techniques and workpiece sizes. Furthermore, ensuring the tool rest is securely fastened to the lathe bed prevents unwanted vibrations or movements during operation.
It’s important to note that while some lathes come with standard tool rests, upgrading to higher-quality ones with improved bearings can significantly enhance overall performance.
Role of Faceplates
Another essential component in woodturning is the faceplate, which serves as a secure holding device for workpieces while shaping cylindrical forms. By attaching workpieces directly onto the faceplate using screws or other fastening mechanisms, woodworkers can ensure stability throughout the turning process. This eliminates any potential wobbling or shifting of materials, allowing for precise and uniform shaping.
Selecting an appropriate faceplate involves considering factors such as diameter compatibility with workpieces and durability of construction materials. Moreover, faceplates equipped with high-quality bearings contribute to smoother rotation and reduced friction during operation.
In my experience working with different types of lathes and accessories, I’ve found that investing in premium-grade tool rests and faceplates has significantly improved precision control during woodturning projects.
Enhancing Wood Lathe Operations with Specialty Tools and Accessories
Steady Rests
Steady rests are essential for turning long, slender pieces on a wood lathe. They provide support and stability, preventing the workpiece from vibrating or flexing during operation. This tool is handy when creating items like table legs or baseball bats. Using steady rest, turners can achieve smoother and more precise results.
Steady rests are crucial when working with longer pieces of wood because they prevent wobbling and ensure consistent turning. Without this tool, it would be challenging to maintain accuracy while shaping the wood.
Chuck Systems
Chuck systems are versatile accessories that expand the capabilities of a wood lathe by allowing for easy changing of turning tools without removing the workpiece. These systems come in various sizes to fit different lathes, providing flexibility in woodworking projects. For example, if I’m working on multiple pieces simultaneously, having different chuck sizes allows me to switch between them effortlessly.
The chuck system’s ability to securely hold various shapes and sizes of wood enhances efficiency during turning processes. It eliminates the need for additional equipment and streamlines operations.
Live Centers
Live centers play a significant role in supporting the opposite end of the workpiece during turning tasks. They reduce friction while ensuring stability as the piece rotates on the lathe. When I first started using live centers, I noticed an immediate improvement in my ability to turn intricate designs without compromising precision.
Live centers enable turners to confidently tackle complex projects by providing reliable support throughout each rotation.
Tips for Maintaining Older Wood Lathe Models Like Delta/Rockwell
Regular Inspection
Inspecting belts, bearings, and other components is crucial for maintaining older wood lathe models. Over time, these parts can wear out or become damaged, affecting the lathe’s performance. By closely monitoring these components, you can identify signs of aging early and take proactive measures to address them.
It’s essential to check for any fraying or cracks in the belts and any unusual noises from the bearings. Examining the overall condition of critical components such as tool rests and tailstocks can help prevent unexpected breakdowns during operation.
Inspecting these elements doesn’t require advanced technical knowledge; it simply involves a keen eye for detail and attentiveness to changes in the lathe’s performance.
Seeking Specialized Resources
Seeking specialized resources or forums for model-specific maintenance tips is highly beneficial. These platforms often provide valuable insights into common issues with specific models and offer practical solutions based on real user experiences.
Online communities dedicated to woodworking equipment are excellent places to seek advice from experienced users who have dealt with similar maintenance challenges. They may recommend specific replacement parts compatible with older models or share innovative DIY repair techniques tailored to your wood lathe model.
Identifying Wood Lathe Components and Their Functions
Understanding Key Components
The headstock, tailstock, and tool rest are essential parts of a wood lathe. The headstock houses the motor, providing power to rotate the workpiece. The tailstock supports the opposite end of the workpiece, ensuring stability during turning. The tool rest is a platform for holding cutting tools while shaping wood.
Understanding these components’ functions is crucial for effectively operating a wood lathe. For instance, if you encounter vibration issues during turning, knowing that it could be due to misalignment or wear in either the headstock or tailstock can help troubleshoot and resolve the problem promptly.
As I delve into my experience with wood lathes, I’ve found that having a clear understanding of each component’s role has been immensely helpful in troubleshooting any operational hiccups. It’s like knowing your way around an engine when you’re driving – familiarity with every part helps identify potential issues more quickly.
Importance of Component Functions
Each component on a wood lathe plays a vital role in its overall functionality. The headstock houses the motor and provides spindle speed control and direction changes through pulleys or electronic means. Meanwhile, achieving precision in turning becomes challenging without a stable tailstock supporting one end of the workpiece.
Recognizing how each part contributes to the smooth operation of a wood lathe empowers users to maintain their equipment better. Regularly checking these components for wear and tear ensures they function optimally over time.
In my woodworking journey, understanding each part is essential and has allowed me to perform regular maintenance effectively and catch potential issues before they escalate.
Daily and Quarterly Maintenance Routines for Wood Lathes
Importance of Maintenance
As the manufacturer recommends, regular maintenance is crucial to keeping your wood lathe hand wheel in optimal condition. A daily routine ensures smooth operation, while quarterly maintenance tasks support the manufacturer’s guidelines and prevent potential issues.
Maintaining a clean and lubricated wood lathe is essential for its longevity and support. Regular cleaning prevents sawdust and debris buildup, which can affect the lathe’s performance. Lubrication reduces friction between moving parts, ensuring smooth operation.
Inspecting the wood lathe and its support daily allows you to identify potential issues before they escalate. By checking for loose screws or bolts, unusual sounds, or irregular movements during operation, you can address minor problems promptly before they become major concerns.
Quarterly Maintenance Tasks
In addition to daily maintenance routines, quarterly tasks are equally important. Adjusting belt tension is vital to ensure the lathe operates smoothly and efficiently. A loose belt can cause slipping or inefficient power transfer.
Checking for loose screws and bolts should also be part of your quarterly maintenance routine. Over time, vibrations from regular use may cause fasteners to loosen. Tightening them regularly prevents potential safety hazards and ensures stability during operation.
It’s essential to perform these maintenance tasks correctly according to the manufacturer’s guidelines for your wood lathe model.
Conclusion
In conclusion, understanding the various components and maintenance routines for wood lathes is crucial for ensuring optimal performance and longevity of the equipment. Woodworkers can enhance their safety, precision, and overall woodworking experience by identifying, maintaining, and replacing parts as needed. Remember to refer to the manufacturer’s guidelines and seek professional assistance when encountering complex issues with wood lathe parts.
Now, armed with a comprehensive understanding of wood lathe parts and maintenance, it’s time to put this knowledge into practice. Regular upkeep is vital to achieving exceptional results, whether inspecting, lubricating, or replacing components. So, let’s roll up our sleeves and give our wood lathes the care they deserve.
Frequently Asked Questions
What are the essential daily maintenance routines for wood lathes?
Regularly clean and lubricate moving parts, check for loose screws or bolts, and inspect the condition of belts and pulleys. Ensure that the lathe bed is free from debris and properly aligned.
How can I identify different wood lathe components and understand their functions?
The user manual provides a detailed breakdown of components. Typical parts include the headstock, tailstock, tool rest, faceplate, and banjo. Understanding their functions will help you operate the lathe safely and effectively.
Are wood lathe parts interchangeable between different models?
Not always. It’s crucial to ensure compatibility by checking dimensions such as spindle thread size or taper type. Manufacturers often provide guidelines on compatible parts in their documentation or customer support services.
What specialty tools and accessories can enhance wood lathe operations?
Specialty tools like steady rests, live centers with bearings, or chuck systems can expand your woodworking capabilities. Accessories such as bed extensions offer increased capacity for larger projects. Always choose high-quality options from reputable suppliers.
How do I maintain older wood lathe models like Delta/Rockwell?
For older models, focus on regular cleaning to prevent dust buildup in moving parts, which could affect performance. Check for signs of wear in critical components like bearings or belts; replacement may be necessary.
