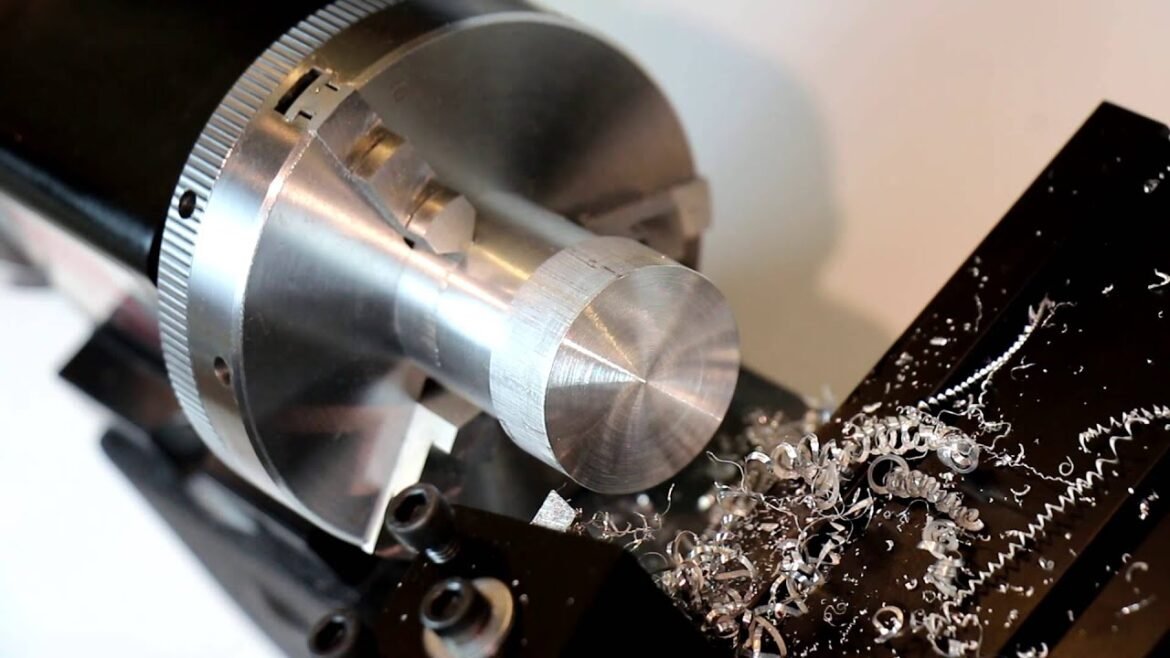

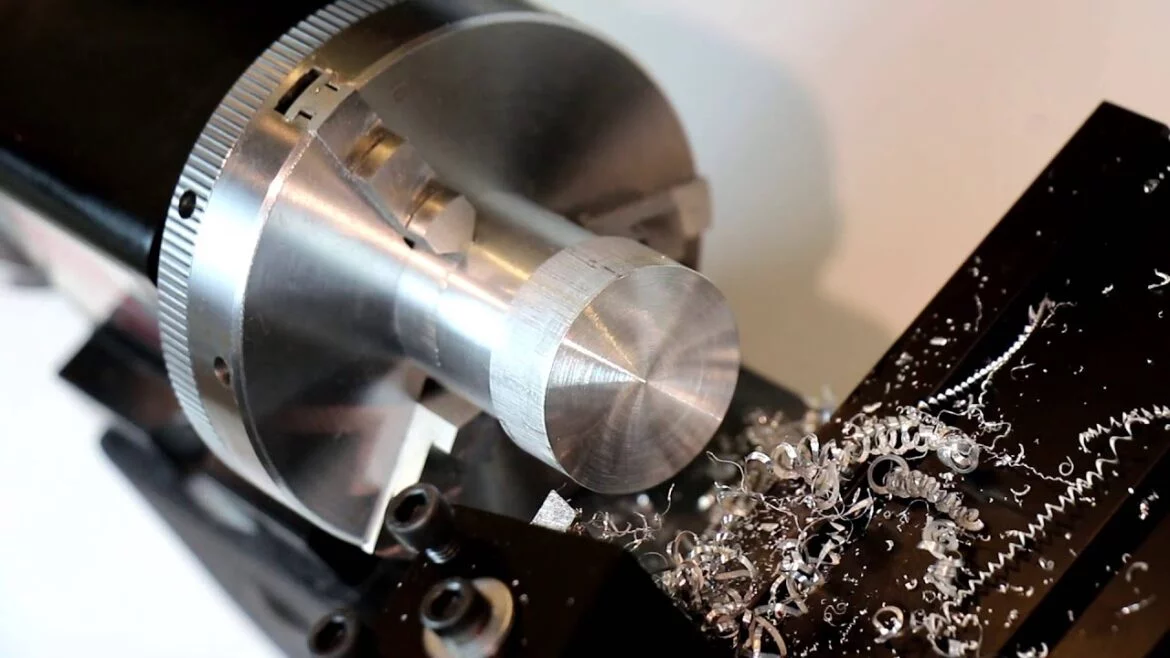

Metal lathe turning shapes metal pieces by rotating them against cutting tools. It’s essential for creating precise cylindrical parts.
Metal lathe turning is a crucial machining process used in various industries. It involves rotating a metal workpiece while a cutting tool shapes it into the desired form. This technique ensures high precision, making it ideal for producing parts like bolts, shafts, and bushings.
Metal lathes come in various types, including engine lathes, turret lathes, and CNC lathes, each offering unique capabilities. Operators need to have a good understanding of the machine’s settings and safety protocols. Mastery of metal lathe turning can significantly enhance the efficiency and quality of manufacturing operations.
Introduction To Metal Lathe Turning
A metal lathe is a powerful machine. It spins metal parts to shape them. Learning to use a lathe is important for metalworkers. Safety is the first step. Always wear protective gear. Use gloves, goggles, and ear protection. Understanding the controls is next. Each lever and dial has a purpose. Practice helps you get better. Start with simple tasks. Move on to complex shapes as you improve. Keep your tools sharp. Dull tools make poor cuts. Regular maintenance is key. Clean the machine often. Lubricate moving parts to reduce wear.
Precision is vital in metalworking. Small errors can cause big problems. Accurate cuts make strong parts. Use measuring tools like calipers and micrometers. Double-check measurements before cutting. Consistent practice improves your skills. Follow plans closely. Even a tiny mistake can ruin a part. Quality control is essential. Inspect parts after machining. Look for defects and fix them.
Fundamentals Of Lathe Design
A lathe has a bed, headstock, tailstock, carriage, and tool post. The bed is the base. It supports all other parts. The headstock holds the spindle. The spindle spins the workpiece. The tailstock supports the work from the other end. The carriage moves the cutting tool. The tool post holds the cutting tool in place. Each part has a specific role. They work together to shape metal.
There are several types of metal lathes. Engine lathes are common. They are versatile and easy to use. Turret lathes are for repetitive work. They have multiple tools. CNC lathes use computers. They are precise and fast. Toolroom lathes are for detailed work. Each type has special features. They serve different needs in metalworking.
Preparing For Metal Turning
Choose the right metal for your project. Aluminum is light and easy to cut. Steel is strong but harder to shape. Brass is smooth and great for details. Always check the metal type before starting. This helps in achieving the best results.
Make sure the lathe is on a stable surface. Set the speed according to the metal type. Secure the metal piece tightly. Adjust the tool rest to the correct position. Always wear safety goggles and gloves. Double-check all settings before starting.
Basic Turning Techniques
Facing is the process of cutting the end of the workpiece. It makes the end flat. Turning is cutting along the length of the workpiece. This makes the diameter smaller. Both operations need a sharp tool. Proper speed and feed rates are important. Safety is a must. Always wear safety glasses.
The depth of cut affects the finish and size. Shallow cuts give a smooth finish. Deep cuts remove more material. Adjust the tool bit to control the depth. Always start with a shallow cut. Increase depth slowly. Check measurements often. This ensures accuracy and prevents mistakes.
Advanced Turning Methods
Taper turning creates a cone shape on metal. The lathe tool moves at an angle. Different angles make different tapers. Thread cutting makes screw threads on metal. The lathe tool moves in a spiral path. This path matches the thread pitch. Both methods need skill and precision.
Complex shapes need special lathe tools. These tools cut curves and intricate patterns. Multi-axis lathes can move in many directions. This helps in creating complex designs. Using a CNC lathe makes this easier. CNC stands for Computer Numerical Control. The computer guides the lathe tool. This ensures accuracy and repeatability.
Credit: turnedwoodenbowls.co.uk
Precision Measurement And Tools
Accurate measurements are key in lathe turning. Use calipers to measure external dimensions. Micrometers help with precise internal dimensions. Dial indicators check alignment and run-out. Height gauges are useful for vertical measurements. Surface plates provide a flat reference plane. Each tool ensures your work is precise.
Calibrating your lathe is crucial. Start by checking the leveling of the machine. Adjust the feet if necessary. Use a dial indicator to check the spindle alignment. Correct any errors. Verify the tailstock is in line with the headstock. Use a test bar for this. Regular calibration ensures consistent results.
Surface Finish And Quality Control
Use a sharp cutting tool for a smooth finish. Reduce the feed rate to avoid rough surfaces. Apply coolant to keep the tool cool. Adjust the spindle speed for better control. Always clean the workpiece before starting.
Chatter marks can ruin the surface. Use a stable machine setup to avoid this. Bumps on the surface may indicate tool wear. Replace the tool when needed. Rough finishes often come from incorrect speeds. Adjust your settings to fix this. Unwanted vibrations can also cause problems. Secure your workpiece tightly.
Safety Practices In Lathe Operation
Always wear safety glasses to protect your eyes. Use ear protection to prevent hearing damage. Gloves should be worn, but ensure they are not loose. A face shield provides extra protection. Wear a dust mask to avoid inhaling particles. Steel-toed boots keep your feet safe.
Regularly check the lathe for loose parts. Ensure all guards are in place. Lubricate moving parts to prevent wear. Check the electrical connections for safety. Clean the lathe after each use. Inspect the cutting tools for sharpness and damage. Replace worn or damaged tools immediately.
The Art Of Metal Turning
Metal turning is both a skill and an art. It allows for the creation of intricate designs. Artists can shape metal into beautiful and functional pieces. Each piece can be unique and personalized. Creativity shines through in the details and finishes. The process requires precision and patience. Metalworkers use tools like lathes to turn and shape the metal. The results can be stunning and durable.
Many metalworkers have created amazing pieces. One artist turned a block of metal into a delicate vase. Another crafted intricate gears for a clock. Each piece showcased skill and imagination. Artists often share their work in exhibitions. These pieces inspire others to explore metal turning. The world of metalwork is full of wonders.
Credit: elemetgroup.com
Learning And Mastering Lathe Skills
Find many online courses and video tutorials. Some great websites offer free guides. Join forums and online groups to ask questions. Experts share tips and tricks there. Visit local workshops and makerspaces for hands-on learning. Books and manuals provide detailed instructions. You can also attend community college classes. Meet experienced machinists for advice. Learning from others speeds up your progress.
Start with simple projects to build confidence. Try making a basic cylinder first. Move on to creating a threaded bolt. Practice making bushings and spacers. Create small tools like a center punch. Try making parts for simple machines. Experiment with different materials like wood and plastic. Document your progress in a notebook. Review your mistakes and learn from them.
Future Of Metal Turning
Lathes are becoming more advanced. CNC machines are now common. They make precise cuts. Automation is reducing manual labor. Smart lathes can connect to the internet. This helps with remote monitoring. 3D printing is also influencing metal turning. Robotics is another big change. They improve speed and safety.
Metalworking skills are evolving. Training programs are more advanced. Craftsmen use new tools and techniques. Digital designs are now common. This improves accuracy. Collaboration is also growing. Craftsmen share tips online. Workshops and courses are more accessible. This helps in learning new methods.
Credit: www.glue-it.com
Frequently Asked Questions
What Is The Turning Process Of A Metal Lathe?
The turning process on a metal lathe involves rotating the workpiece while a cutting tool removes material. This shapes the metal into the desired form. The lathe ensures precision and smooth finishes. This technique is crucial in manufacturing cylindrical parts.
What Direction Does A Metal Lathe Turn?
A metal lathe typically turns in a counterclockwise direction when viewed from the tailstock end. This ensures proper cutting action.
Can A Metal Lathe Be Used For Woodturning?
Yes, a metal lathe can be used for woodturning. Ensure you clean it thoroughly to avoid metal contamination.
What Speed Should A Metal Lathe Turn?
The speed for a metal lathe depends on the material and tool. Typically, 60-500 RPM for hard metals and 500-2000 RPM for softer metals. Always consult your lathe’s manual for specific recommendations.
Conclusion
Mastering metal lathe turning opens up a world of precision and creativity. This skill enhances your craftsmanship and project quality. Practice and patience are key to success. Remember, safety is paramount. Equip yourself with the right tools and knowledge. Elevate your metalworking projects with confidence and precision.
Happy turning!
